Aluminum IP66 SMD LED Outdoor Pole Light 60W For Garden

Product Categories
Shanxi Guangyu Led Lighting Co.,Ltd.
Contact Now

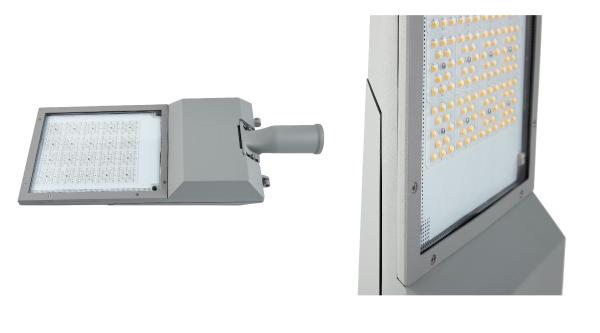

Aluminum IP66 SMD LED Outdoor Pole Light 60W For Garden

  • 1
  • 2

Brand Name : GYLED

Model Number : GY7330LD

Certification : CE,RoHS,EMC,LVD

Place of Origin : CHINA

MOQ : 10

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200000PCS PER YEAR

Delivery Time : 7-15days

Packaging Details : 1PC IN 1CARTON

Ip rating : 66

Light source : LED

Input voltage(v) : AC100-277V

Cri (ra>) : 80,70

Item type : LED Parking Light

Working lifetime(hour) : 100000

Warranty(year) : 5

Working temperature(℃) : -20 - 50

Application : road,highways,garden,streets,outdoor

Lamp luminous efficiency(lm/w) : 130,140,150

Color temperature(cct) : cool white,warm white,3000-6500k

Led light source : SMD

Lamp body material : Aluminum

Material : Aluminum+Glass Cover

Power : 30-250W

Beam angle(°) : Type II III IV

IK : 09

Contact Now

TUV CB CE Approved Aluminum IP66 SMD LED Outdoor Pole Road Light Streetlight 60W LED Street Light

GY5620LD GY6525LD GY7330LD
Nominal Power 30W-80W 100W-150W 180W-250W
Input Voltage 100-277VAC,50/60Hz
Power Factor >0.95
THD <19%
Light Distribution II,III, IV
CCT 2700K~6500K
CRI Ra>70
Dimensions 566*205*110mm 658*251*112mm 731*301*114mm
Protection Grade IP66, IK09
LED Lumileds 3030 or 5050
Electrical Protection CLASS I
Luminous Flux 130~140Lm/W (3030 LED) 150~165Lm/W (5050 LED)
Package Size 596*225*130mm 688*271*132mm 761*321*134mm
Housing Die-casting Aluminum
Warranty 5 Years

For this reason, correlated color temperature (CCT)-based illumination gives a significant lighting performance both in terms of energy efficiency and in overcoming traffic accidents in low visibility areas.

High Lumen ＞130lm/w SMD LED
Good Heat Dispassion Die Casting Aluminum Housing
60mm diameter street light pole connector
Integrating sphere test
IP65 Waterproof test
AC85-265V Voltage test
Apply in highway, expressway, primary road, subordinate road, and some other roads, along with square, sports ground, parking lot, etc.

High protection level
High transmittance.
Uniform luminance
Some light and low light loss

High-quality bracket screw
Using high-quality stainless steel screws,
High hardness, no easy deformation,
Rust prevention and corrosion protection

Rotary button
Switch 360° to open

Aluminum IP66 SMD LED Outdoor Pole Light 60W For Garden

Aluminum IP66 SMD LED Outdoor Pole Light 60W For Garden

Aluminum IP66 SMD LED Outdoor Pole Light 60W For GardenAluminum IP66 SMD LED Outdoor Pole Light 60W For GardenAluminum IP66 SMD LED Outdoor Pole Light 60W For Garden
