220 Watt Ra70 Roadway LED Lighting IP66 Anti corrosion powder coating

Shanxi Guangyu Led Lighting Co.,Ltd.
Contact Now

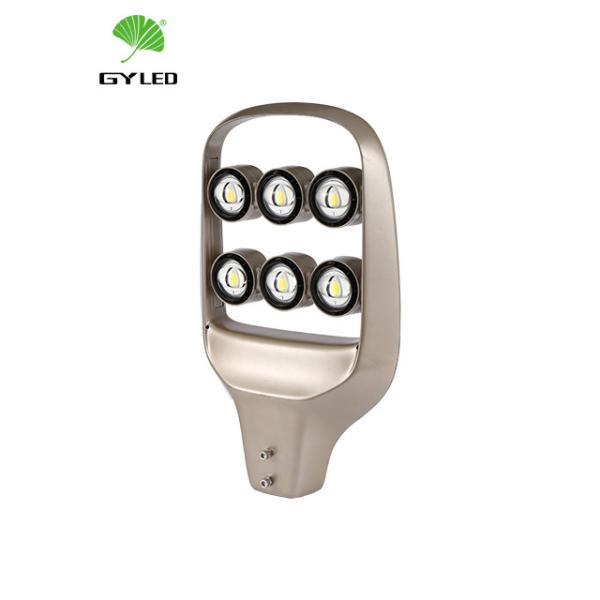

220 Watt Ra70 Roadway LED Lighting IP66 Anti corrosion powder coating

  • 1
  • 2

Brand Name : GYLED

Model Number : GY-CELL-LD

Certification : CE, ROHS

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200000PCS/YEAR

Delivery Time : 7-10DAYS

Packaging Details : 1PC IN 1CARTON

Power : 50-220 Watt

Ip rating : IP66

Input voltage(v) : AC100-240/277V

Item type : COB LED Street Lights

Working lifetime(hour) : 50000

Warranty(year) : 5

Working temperature(℃) : -20 - 50

Application : road,highways,garden,streets,outdoor parking

Lamp luminous efficiency(lm/w) : 130-150

Material : Die-casting Aluminum+Glass Lens

Contact Now

Good quality IP66 200W led street light replacement city main roadway lighting

Technical parameters:

Model No. GY-CELL-5528LD50 GY-CELL-5528LD100
Number of Modules 2 4
Module Type COB LED CHIPS
Rated Power (W) 50W 100W
Input Voltage(V) AC100-240/277V/50-60Hz
Power Factor ≥0.95
Nominal Lumen Output (Lm) ≥6500Lm ≥13000Lm
Luminous Efficiency (lm/w) ≥130Lm/W
Color Temperature(CCT) 3000K~5700K
CRI (Ra) Ra70
Pole Connector Size (mm) Ø48~60mm
IP Rating IP66
IK Rating IK08
Working Temperature (℃) -40~+50℃
Surface Finish Anti-corrosion powder coating
Lamp Size 552*282*105mm
Net Weight 4.1Kg 5.4Kg
Packing Size 605*340*160mm
Packing Quantity 1 unit
Optional Spare Parts Photocells, Surge Protection Device, Pole Adapter

Model No. GY-CELL-6741LD150 GY-CELL-6741LD200/220
Number of Modules 6 9
Module Type COB LED CHIPS
Rated Power (W) 150Watt 200/220Watt
Input Voltage(V) AC100-240/277V/50-60Hz
Power Factor ≥0.95
Nominal Lumen Output (Lm) ≥19500Lm ≥28600Lm
Luminous Efficiency (lm/w) ≥130Lm/W
Color Temperature (CCT) 3000K~5700K
CRI (Ra) Ra70
Pole Connector Size (mm) Ø48~60mm
IP Rating IP66
IK Rating IK08
Working Temperature (℃) -40~+50℃
Surface Finish Anti-corrosion powder coating
Lamp Size (mm) 675*418*111mm
Net Weight (Kg) 8.4Kg 10.4Kg
Packing Size 730*475*165mm
Packing Quantity 1 unit
Optional Spare Parts

Photocells, Surge Protection Device, Pole Adapter

DESCRIPTION:

1. Longlife LED source

2. Energy saving

3. High Power LEDs generating cool white light

4. Pressure Die Cast Aluminum housing

5. Perfect design, Easy Installation

6. Highly Economic and reliable

7. Low maintenance

8. One-time installation

Within those world well-known LED Street Light manufacturers and contractors in China, GYLED is a reliable supplier having a big 150w cob-led street light with 3 lens projects ongoing. With products for sale, you can wholesale LED Street Light of good design at low cost and low price from our factory.

Product Features:

Appearance design: With a new, smooth, and dignified appearance.
Modularization: The light source, heat dissipation, light distribution, and protection of lamps constitute a module.
Lamp with stable, reliable work and single module fault will not affect other module work. The lamp assembly and
maintenance are flexible and convenient.
Optical design: The lamp is designed with the COB light source + glass lens. The accurate light distribution, makes
the exposed environment uniform and comfortable. Luminescence without strobe, long-term use of the eyes will not
fatigue.
Angle adjustment: The angle of the lamp module can be pre-adjusted to meet the diversified lighting environment
needs.
Flexible collocation: The lamp can be equipped with the COB module or single array LED module.
Open cover method: The electric box of lamp use the clasp type open cover method, can open and close by hand, easy
maintenance.
Anti-falling design: The lamp design has an anti-falling chain, and the anti-falling chain can be unfolded install, or conceal
install on the lamp pole, use flexible and reliable.

220 Watt Ra70 Roadway LED Lighting IP66 Anti corrosion powder coating220 Watt Ra70 Roadway LED Lighting IP66 Anti corrosion powder coating220 Watt Ra70 Roadway LED Lighting IP66 Anti corrosion powder coating

220 Watt Ra70 Roadway LED Lighting IP66 Anti corrosion powder coating
